PIVOT
Exterior doors with offset pivot
3"
installation depth

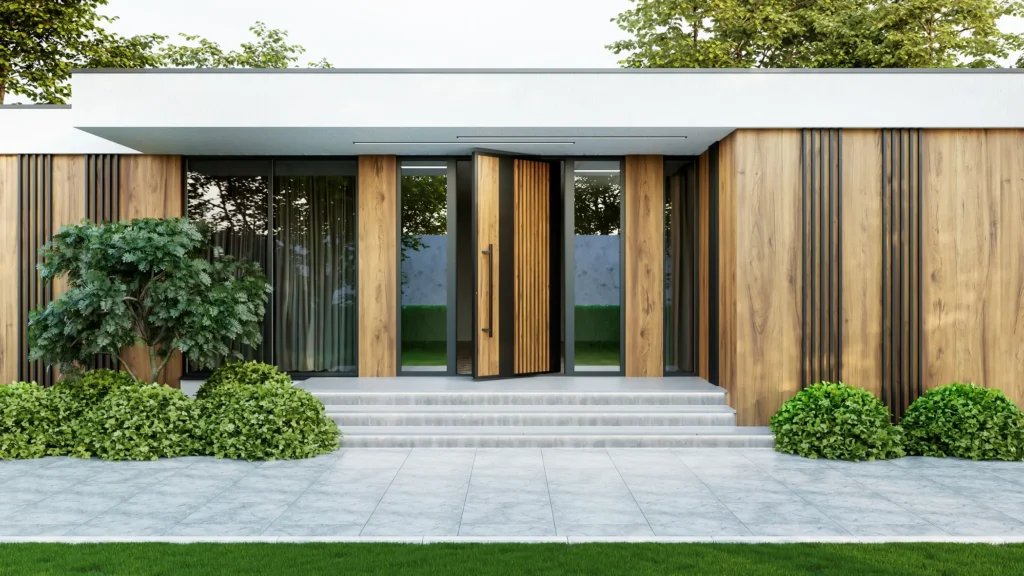

A pivot door for external installation, whose main features are its large dimensions and unusual design. The offset pivot axis gives them a unique appearance and the concealed hinges are characterised by a very high load capacity.
Choose a model that meets your expectations.

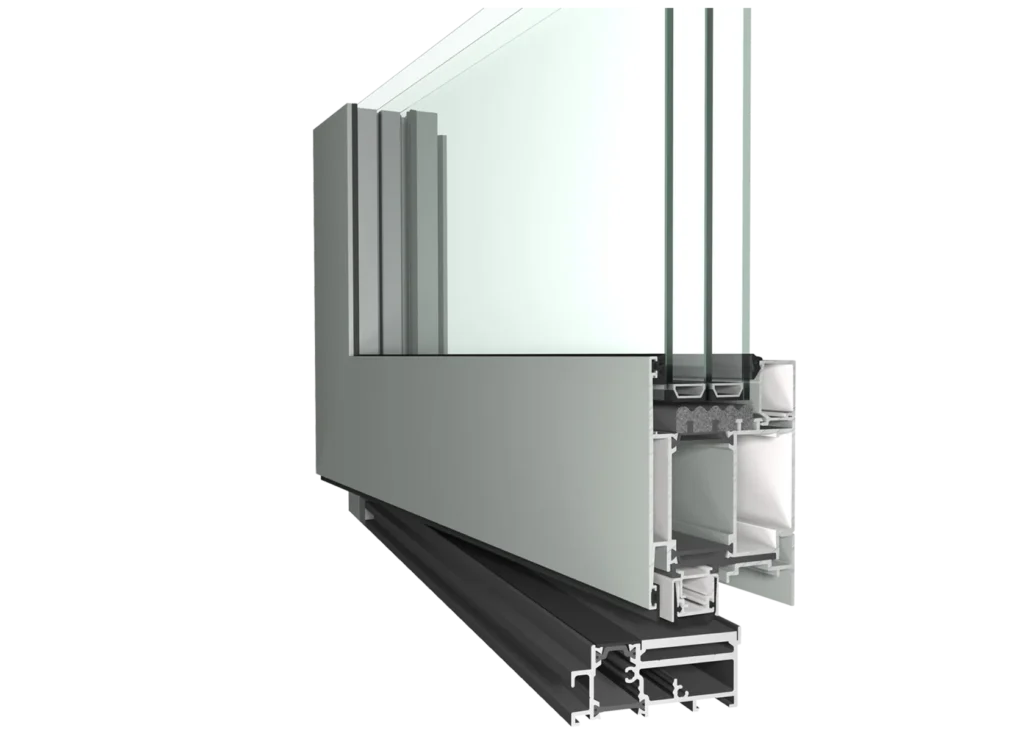

MasterLine 8
Reynaers
Technical data
- Hinge - has adjustment for possible correction
- Sash in panel design or with insulated glass up to 2-7/16" thick
- Resistance to wind load - class C3
- Maximum sash dimensions 70" x 118" - doors opening inwards
- Maximum weight - 441 lbs
- Watertightness - class 4A
- Air tightness - class 4
- Installation depth 3"
- FUHR espagnolettes made of stainless steel, it is possible to use a single espagnolette or two synchronized ones connected electronically

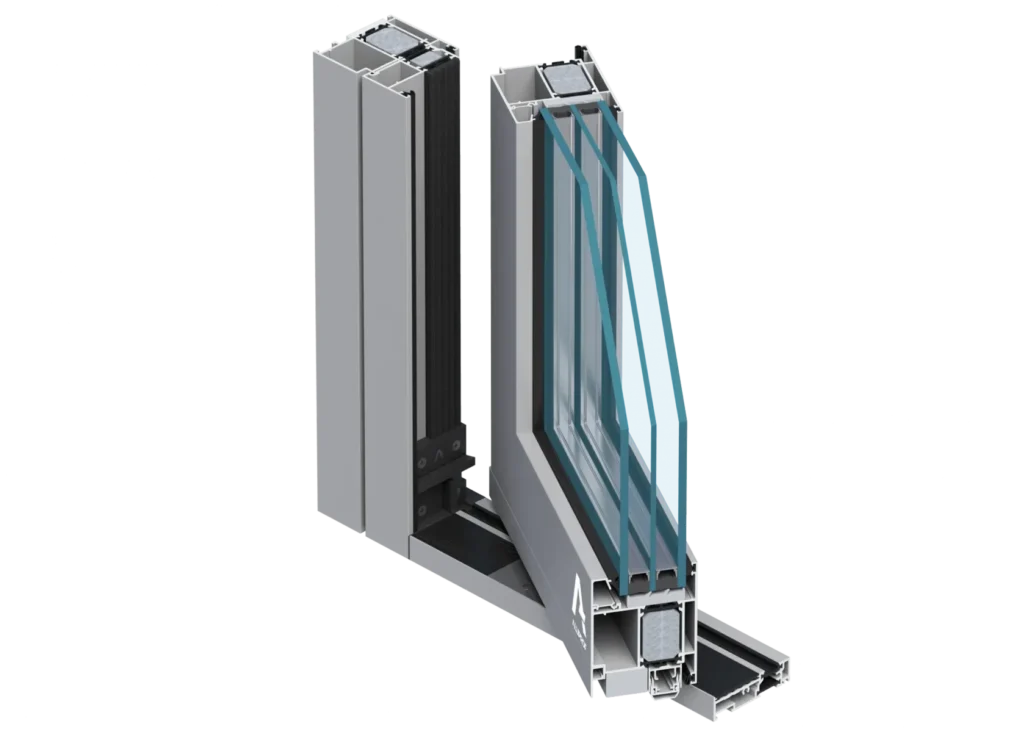

MB-86N Pivot Door
Aluprof
Technical data
- Hinge – features adjustment and a built-in cable duct, enabling the use of an illuminated handle and access control on the leaf
- Sash in panel design or with insulated glass up to 2-3/8" thick
- Resistance to wind load - class C3
- Maximum sash dimensions 78-3/4" x 133-3/4"
- Maximum weight - 1100 lbs
- Watertightness - class 3B
- Air tightness - class 3
- Installation depth 3"
- FUHR espagnolettes made of stainless steel, it is possible to use a single espagnolette or two synchronized ones connected electronically
Glass
33.1 Safety
33.2 (Safety) Matt Film
44.4 Anti-Burglary
Antisol Blue 6
Antisol Brown 4
Antisol Brown 6
Antisol Green 4
Antisol Green 6
Antisol Grey 6
Chinchilla White 4
Float 4
Float 6
Ornament (109) 4
Ornament Delta 4
Ornament Master Carre
Ornament Silvit 4
Ornament – Stripes 4
Stopsol Blue 6
Stopsol Brown 6
Mirastar
