MB 77 HS
Create your space
2
EPDM Gaskets
U
-Factor from
0.18
Thermal Transmittance
3
Number of chambers

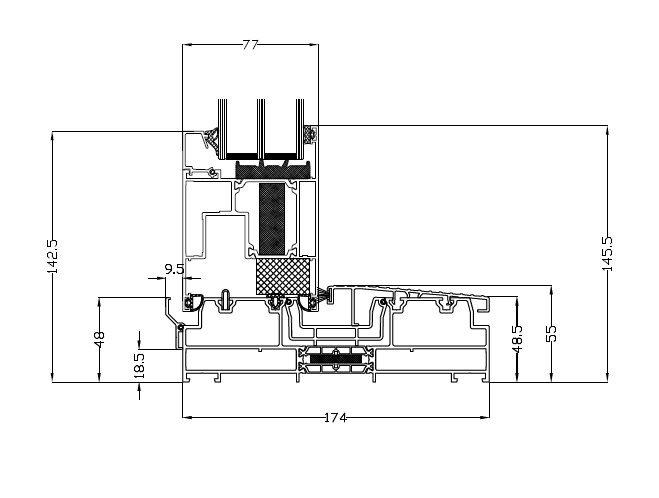

6-7/8"
installation depth

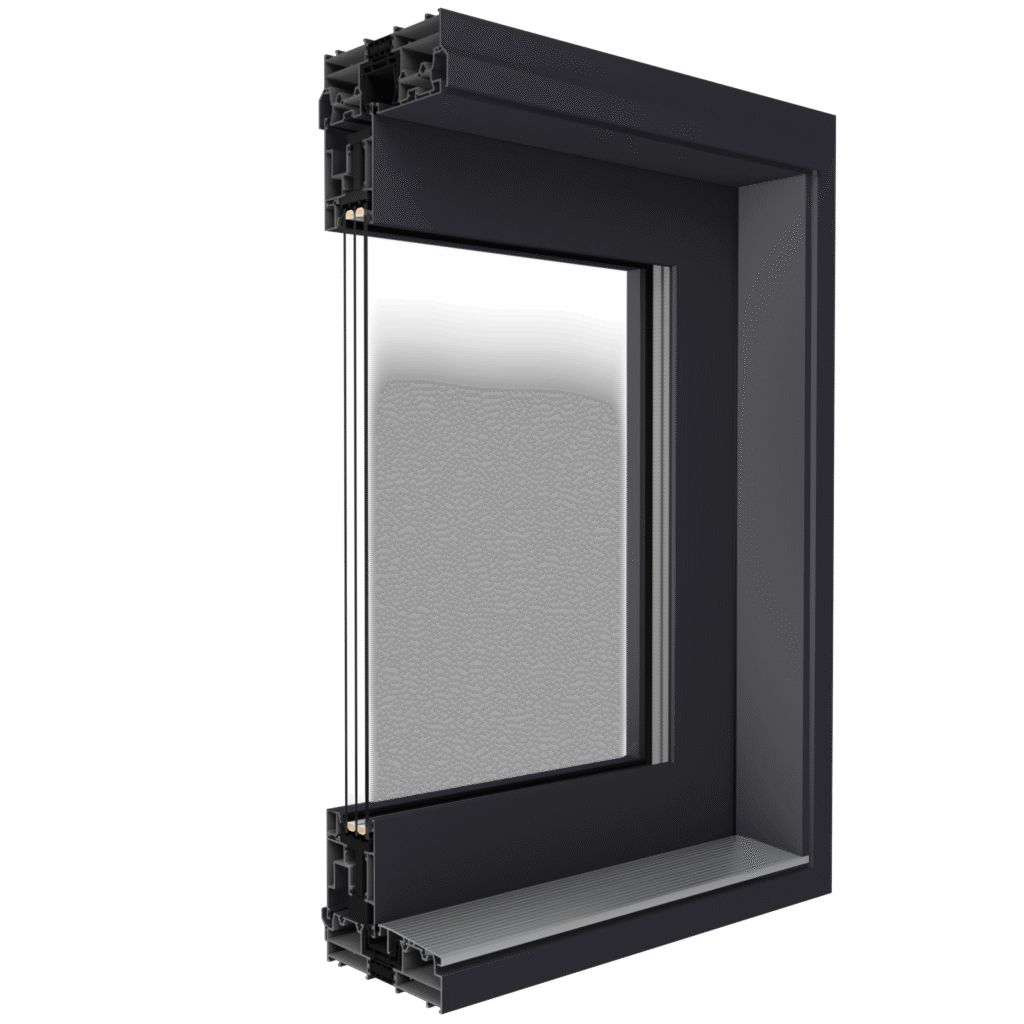

These aluminum terrace systems are an ideal solution to create trendy, large-size terrace and balcony glazing to give interiors a unique feel.
With their extremely durable structure, you can use leaves up to 880 lbs. A low aluminum threshold that can be hidden in the floor adds to its excellent functionality.
Standard Equipment:
- G-U lift and slide fittings with 3 locking bolts
- micro-ventilation striker
- aluminum handle on the inside, recessed grip on the outside
- 3-glazed (2-chamber) units infilled with argon gas
- 2 EPDM gaskets in black (external and internal)
- system carts with a load capacity of 660 lbs
- 1-7/8" high threshold
- RAL matt color: white (9016), anthracite (7016)
Aluminium window color range
Choose the color that suits you Over 200 RAL colors of windows.
We offer smooth, matt, and metallic paints that have a texture or have the so-called special effects (mainly wood-like).
Glass
With over 30 years of experience in the production of composite glass, we offer a very wide range of glass with which you can fit your windows and doors. They meet strict requirements for energy efficiency and sound insulation. The offer also includes laminated glass (safe and burglar-proof), sun protected glass, glass with enhanced sound insulation, tempered, ornamental and sandblasted glass.
33.1 Safety
33.2 (Safety) Matt Film
44.4 Anti-Burglary
Antisol Brown 4
Antisol Brown 6
Antisol Dark Blue 6
Antisol Green 4
Antisol Green 6
Antisol Grey 6
Float 4
Chinchilla White 4
Float 6
Stopsol Blue 6
Stopsol Brown 6
Handles
Our PVC, aluminium and wood handles are distinguished by their high aesthetics, functionality and durability. Thanks to various color options, they can be perfectly matched to the color of the windows, doors, or the color scheme of the building.
